Diffusers

Description :

MSN Exports Diffusers are manufactured from Hi Grade Aluminum sheets in one Piece without Joints/Gaps in the Corner and available as 4 Way supply and return diffusers.

Available Sizes:- Neck:- 225x225mm,300x300mm,375x375mm & 450x450mm

Description :

Spot Diffuser is a long throw diffuser designed to throw relatively large quantities of air over long throws and is suitable to condition large spaces such as terminal buildings, factories, warehouses and auditoriums. The “Ball” can be swiveled from the horizontal/vertical plane for sizes 200,304 & 410 respectively

Description :

MSN Exports Jet Nozzle diffusers or named as Eye Ball Diffusers are specially designed to handle high air flow rates and provide relatively long throws which make them particularly suitable for conditioning of large spaces such as halls, warehouses, and auditorium etc. The air flow pattern can be adjusted in any direction and is suitable for long distance air supply whilst maintaining low noise levels.

Available Neck Sizes:- 200Ø,250Ø,275Ø,315Ø,400Ø

Description :

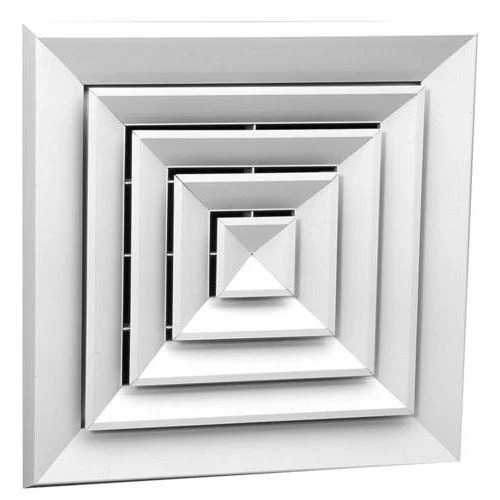

MSN Exports Tile Diffusers are manufactured from Hi Grade Aluminum sheets in one Piece without Joints/Gaps in the Corner and available as 4 Way supply and return diffusers. The Outer to Outer remains standard for this type of Diffusers as 595x595mm immaterial of any Neck sizes. Tegular diffusers gives a perfect Bond for Grid/ Tile & Armstrong ceilings.

Available Neck Sizes:- 225x225mm,300x300m,375x375mm & 450x450mm

Description :

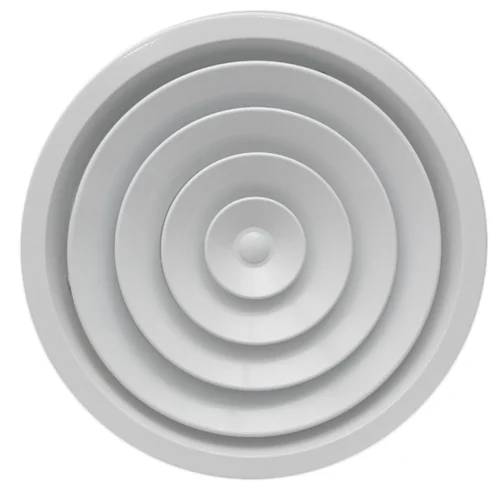

MSN Exports Circular diffusers are capable of a high aspiration rate and have the capacity to handle large volumes of air at relatively low sound levels for supply and extract applications, making these diffusers particularly useful for installation in open plan areas such as auditoriums, airport lobbies, supermarkets and factories.

Available Neck Sizes:- 200mmØ,300mmØ

Description :

Spot Diffuser is a long throw diffuser designed to throw relatively large quantities of air over long throws and is suitable to condition large spaces such as terminal buildings, factories, warehouses and auditoriums. The “Ball” can be swiveled from the horizontal/vertical plane for sizes 200,304 & 410 respectively .

Description :

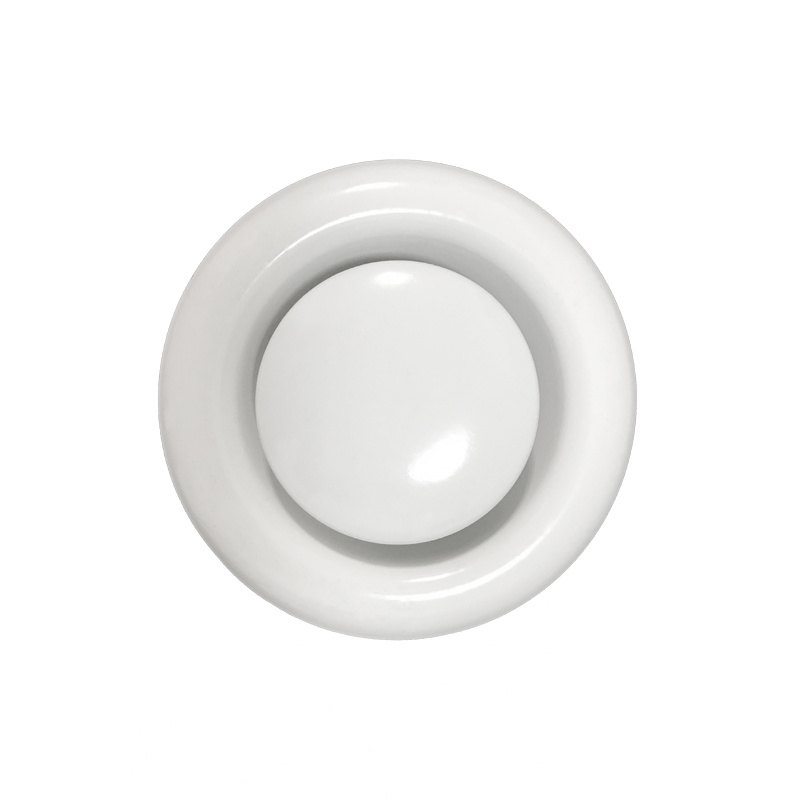

MSN Exports Disc Value diffusers are used as an alternativeto ceiling diffuser. They are most commonly used for the purpose of ventilation. The air flow through the disc valve can be adjusted by rotating the disc clockwise or anticlockwise. The rotation changes the free area between the disc and the frame.

Disc valves are preferred by many architects and building owners for toilets, bathrooms and ventilation in damp areas due to its simplistic yet aesthetic appearance. The sizes starts from 100mm up to 200mm Diameter.

Available sizes : Ø100mm, Ø150mm, Ø200mm

Description :

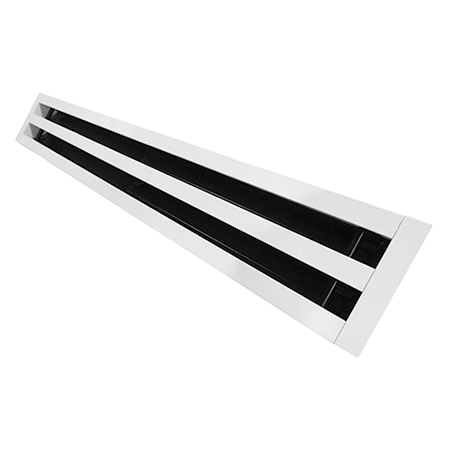

MSN Exports slot diffusers are designed for variable air volume systems. They ensure a uniform blanket of air that adheres to ceiling even at low flow rates. The Pattern controllers can be adjusted to adjust the air flow direction Right, Left or Down.

Available Sizes:- 1 Slot to 8 Slots.

Description :

MSN Exports swirl diffusers are designed for variable air volume systems. They ensure a uniform blanket of air that adheres to ceiling even at low flow rates. The Pattern controllers can be adjusted to adjust the air flow direction Right, Left or Down.

Available sizes : 2 Slot to 8 Slots and as per site design
