Grilles

Description :

MSN Exports Extruded Aluminum Linear Bar Grilles offer a clean, crisp styling and efficient air distribution. The design features precision mitered corners, a wide selection of core styles with a variety of border widths and mounting frames, and multiple fastening types.
Deflection available:- 0°, 15°,30°,45° Available sizes:- Tailored Made.
Types:- 1 Way, 2 Way, 4 Way and Mixed deflection

Description :

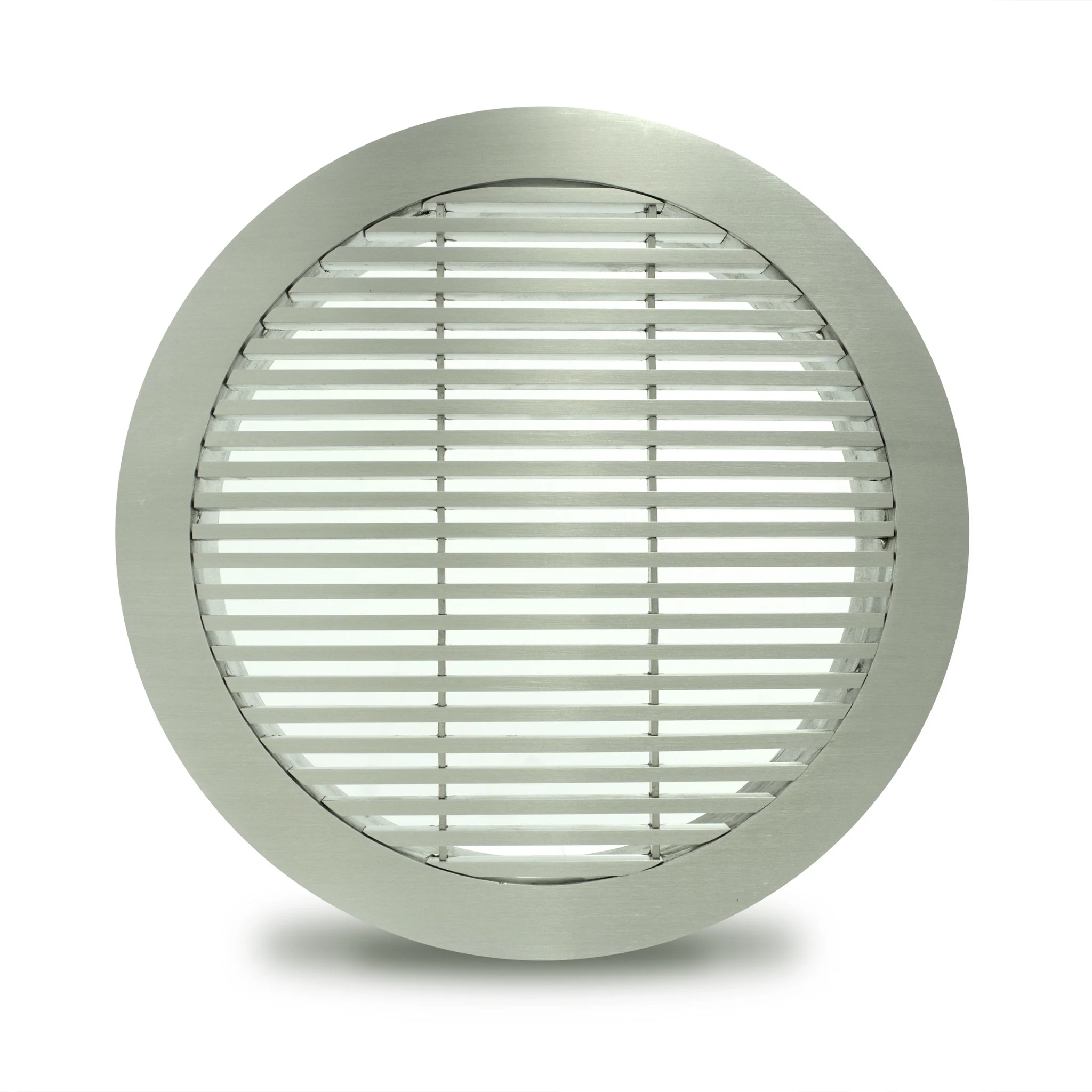

MSN Exports round grilles Designed to fit cleanly over the end of spiral or round duct work, this high capacity series of grilles feature an integrated round duct adaptor, which works great in exposed duct applications

Suitable for:- Supply & return air
Available sizes : Ø150, Ø200, Ø300 ,Ø375, Ø450

Description :

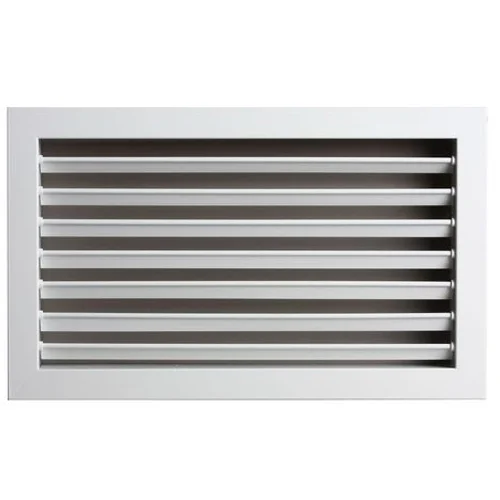

The series of Single Deflection Grille (SDG) incorporates a single bank of individually adjustable blades, Single Deflection grilles are a step up from supply units like air valves. Able to handle much larger air volumes, and with the adjustable blades enabling throw to be directed anywhere in a single plane. With an aerodynamic design creating minimal turbulence, the fully extruded aluminum blades of Single Deflection Grilles allow throw adjustment, whilst keeping noise and pressure drops to a minimum. When being used for extract this result in the advantages of being able to handle greater air volumes.

Description :

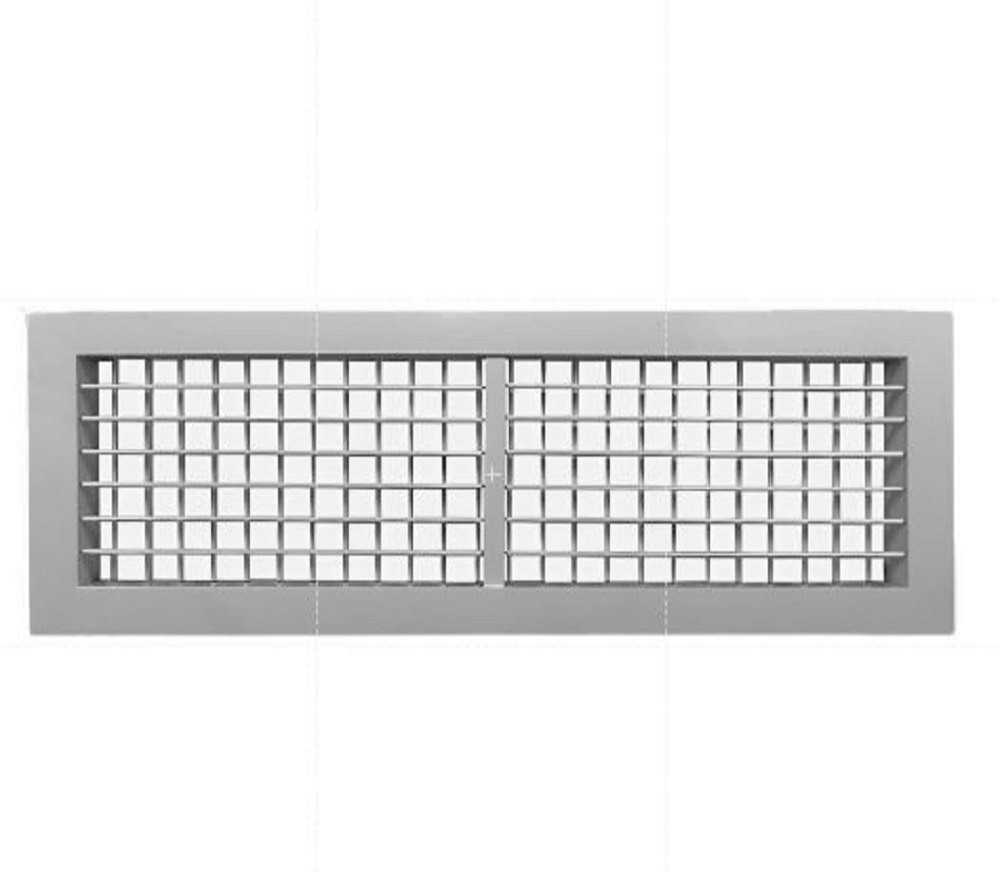

The series of Double Deflection Grille (DDG) with two banks of individually adjustable blades, Series DDG are more suited to supply applications than their Single Deflection (SDG) cousins. Just like SDG grilles though, Double Deflection grilles are suitable for a wide range of settings, including ceilings, walls and on ductwork. The two rows of blades are set at 90 degrees to each other, with one row set just behind the front most row. Gaps between the blades are sufficient to allow easy adjustment of blades, enabling custom blow patterns to be created. Whether these be targeted towards one area, or fanned out to affect a wide area.

Description :

MSN Exports Curved Grilles are designed to meet up the aesthetic look and can be directly fitted to flat oval duct & round ducts directly. The Curvature of these grilles can be manufactured as per the Dia of the Ducts and will have a uniform and smooth presence along with the ducts. These grilles are available in Various degree deflection starting from 0°,15°,30° &45° and also two way mixed deflection also can be customized as per the air flow requirements.
